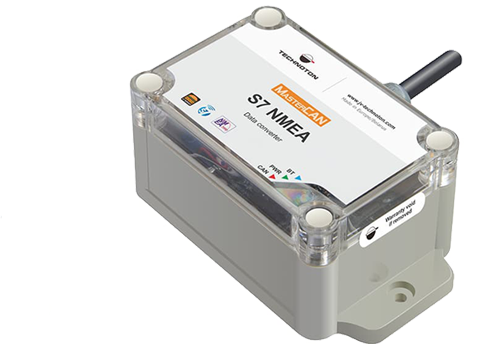

Technoton S7 NMEA Data Converter

The Technoton S7 NMEA data converter enables compatible operational data to be exchanged with NMEA-based systems. It is suited to marine and onboard integration projects where machinery or sensor information must be made available to navigation, monitoring, or telematics equipment.

Key Features & Capabilities

• Wireless BLE to NMEA 2000 Data Conversion — Converts data from DFM S7 and DFM Marine S7 wireless fuel flow meters into standard NMEA 2000 messages.
• Seamless Marine Integration — Enables easy integration with NMEA 2000-compatible displays, navigation systems, and marine telematics platforms.
• Bluetooth Low Energy (BLE) Connectivity — Receives real-time data wirelessly from one or two DFM S7 flow meters using Bluetooth 4.2 technology.
• Supports Differential Fuel Consumption Monitoring — Automatically calculates the difference between fuel supply and return lines for accurate differential fuel consumption measurement.
• Real-Time Fuel Monitoring — Transmits key operational data including instant fuel consumption, total engine operating hours, and fuel temperature.
• Certified NMEA 2000 Solution — Certified by the National Marine Electronics Association (NMEA) for reliable marine communication and compatibility.
• Compatible with Marine Applications — Ideal for boats, ferries, tugboats, dredgers, bulk carriers, passenger vessels, diesel generators, boilers, and other marine equipment.
• Supports Marine Telematics — Integrates with GPS trackers, black boxes, and vessel monitoring systems for remote fuel consumption and performance tracking.
• No Flow Meter Recalibration Required — Each DFM S7 flow meter processes flow independently, eliminating the need for mutual calibration in differential measurement.
• Easy Mobile Configuration — Configure the converter using the Service S7 NMEA Android mobile app via Bluetooth, including device pairing and network settings.
• Supports Single & Dual Flow Meter Installation — Connect one or two wireless flow meters for standard or differential fuel consumption monitoring.
• Industrial-Grade Reliability — Built with IP68-rated protection for dependable performance in harsh marine environments.
• Wide Operating Temperature Range — Operates reliably in temperatures from -40°C to +85°C, making it suitable for demanding marine applications.
• Compact & Easy Installation — Compact design with a pre-installed interface cable enables quick installation and integration into existing vessel systems.
• Improves Fleet Efficiency — Helps vessel operators optimize fuel consumption, detect abnormal fuel usage, support preventive maintenance, and improve operational efficiency.
